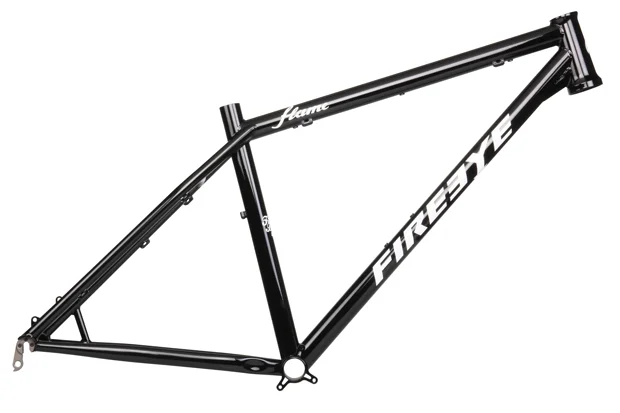

Fire Eye Flame Frame 26/27.5

Fire Eye Flame Frame 26/27.5


-Size: S/16.5”, M/17.5”, L/19”
-Suggested fork travel: 120-150mm
-Material: 4130 Cromoly
-Headtube size: Fully integrated tapered, 1-1/8 inches at the top,
1.5 inches at the bottom
-Seatpost size: 31.6mm
-Seat clamp size: 34.9mm
-Front derailleur clamp size: 34.9mm for top cable routing
-Dropouts: 10mm x 135mm
-Hanger type: Vertical
-Disc brake compatible: International standard disc brake mount
-Tire size: 26" x 2.4 (can also be set up with 650b wheels)
-ISCG: 05 type
-BB size: 73mm (standard MTB Euro BB shell)
-Frame colors: Black, Green, Yellow
-Weight: 3000g(M/17.5”)

GEOMETRY (Suggested fork travel: 120-150mm)
A-Headtube angle: 68°
B-Headtube length: 125mm
C-Top tube (Effective): 16.5"/570mm, 17.5"/590mm, 19"/610mm
D-Seat tube angle: 72°
E-Seat tube length: 16.5"/419.1mm, 17.5"/444.5mm, 19"/482.6mm
F-Wheelbase: 16.5"/1053mm, 17.5"/1073mm, 19"/1093mm
G-Chainstay: 420mm
H-BB Height: 310.3mm (-20mm)

Not Available for sale In Western Australia
